欧式防爆起重机

特性描述 Feature Description

总体 In general

韵道防爆起重机源自欧洲的防爆技术和主要部件、精益求精的品质追求，是中国防爆领域创新产品，填补了国内高端防爆起重机的空白。

Yudel explosion proof cranes, designed and main components supplied by KONECRANES (SWF) -- world leading technology and best reliability.

防爆等级符合ISO、欧洲及中国国家标准

Explosion proof technology based on harmonised European Standards (CENELEC)

起重量达到80t

Max. Safe working load  80t

多种防爆等级满足所有用户的各种使用

Flexible class solution for all lifting needs

 双梁桥式防爆起重机

Explosion Proof Double Girder

EOT Crane

起重量 Load: 3t–80t

单梁桥式防爆起重机

Explosion Proof Single Girder

Toprunning EOT Crane

起重量 Load:0.5t–32t

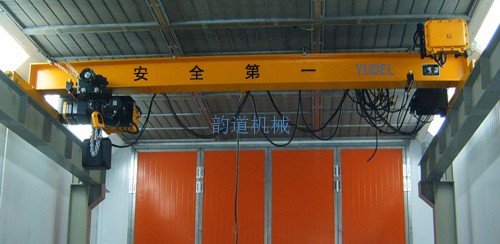

单梁悬挂防爆起重机

Explosion Proof Single Girder

Underruning EOT Crane

起重量 Load:0.5t–32t

机械  Mechanical feature

焊接箱形主梁，拱度符合国家标准

Welding box girder, DIN/FEM standard deflection

钢板材料为Fe37或Fe52 （相近国内钢材Q235B或Q345B）

Material Fe37 or Fe52

腹板由40m数控切割整幅下料，确保拱度曲线的光滑成型和精度

Whole length CNC cutting for complete web plate, high deflection accuracy

小车轨道采用16Mn 高强度热轧扁钢

Trolley rail is high strength flat steel bar (hot rolled, 16Mn)

主焊缝采用埋弧自动焊、无损探伤

High quality autometic welding and NDT inspection

焊后整梁抛丸处理，达到Sa2.5级，消除焊接应力

Shot-blasting Sa2.5 for complete girder after welding, stress release

环氧富锌漆，两底两面，140μ厚，寿命长，外表美观

Epoxy resin high quality paiting, 2x2 with 140μm

主梁与端梁采用10.9级高强度螺栓连接，确保整机结构强度和精度

10.9 class High tension bolts mouting between girder and legs, life time safety connection

大小车采用三合一防爆驱动机构，硬齿面，盘式制动器

Compacted explosion proof gearmotor driving, hardern gear, safety disck brake

防护等级IP55，F级绝缘，接电持续率达到40% ED

High proection class IP55, F class, 40% ED

防闪功能可选，主要额外配置为包铜车轮、包铜吊钩

Spark resistant options available,  bronze load/return wheels

Bronze coated hook, bronze trolley wheels and wheel drop brackets

维修走台位于主梁一侧，由花纹板、扶手（高度1050mm）、立柱和脚趾护边组成

Full-length service platform along the crane bridge is supplied, where it is equipped with protective hand railing and toe strips.

 电气Electrification and outfitting

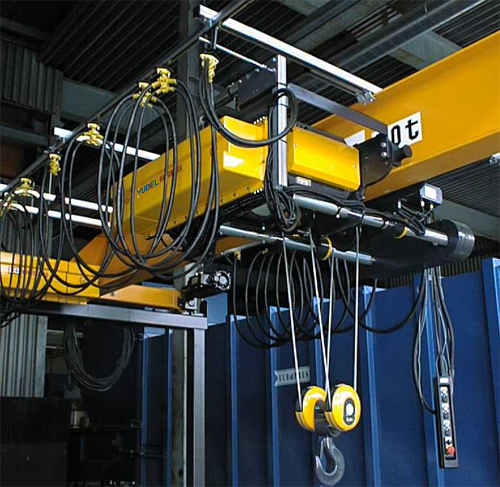

起重机采用圆电缆防爆滑轨供电

Round cable and explosion proof festoon power supply system

配置缺相保护功能

Phase control guard opens the main contactor in case of phase failure

起升、小车、大车三机构独立控制，能单独运行或同时运行

All hoist and crane movements are independent and can be run simultaneously.

铝合金电气支架

Aluminium alloy bridge panel with supports

采用起重机专用的防振接触器

Contactors meet crane applications, rated for severe vibration.

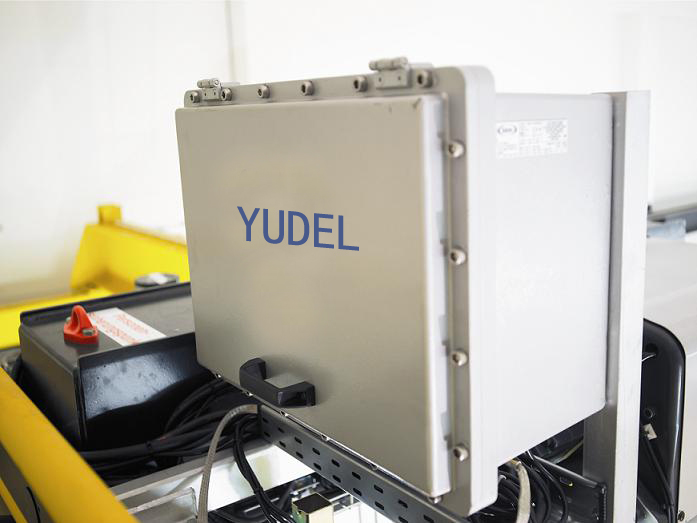

电控箱防爆，防腐蚀，防护等级达到IP55

Flameproof enclosure (contactors, transformers etc.)

The control panels are finished to withstand corrosion, IP55

控制箱内布局合理，便于维修

The components are positioned in a maintenance friendly way, and the whole layout provides good protection against accidental contact.

插头连接部位采用塑料套管绝缘保护

The multi-wire type fixed cables with plastic insulation are intended for crane usage.

所有线缆都有线号，便于识别

Cables are coded either with numbers, colours or tags for easy identification.

小车移动供电系统采用防爆起重机专用的圆电缆，耐压等级达到450/750V

The flate cables used for festoons are round cables rated for 450/750V, specially designed for explosion proof cranes, hoists.

 安全保护 Safety protection

大车、小车三合一电机防坠保护，防止意外坠落

Gearmotor locker rope to protect drop

过载保护功能

Electro-mechanical overload protector

20分钟低电压过载测试

Overload, under voltage and 20 min running testing for the hoists

起升限位功能

Hoist upper and lower limit switches

力矩限制器

Torque limiter

所有电机带过热保护功能

All motors with thermistors

声光报警装置

Warning indicator: flashing lights and warning sound

所有防爆起重机驱动机构和电控箱都配有接地装置

Earthing for all driving units and cubicles

起重机控制模式 Control Mode

地操 Pendant

操作简便，无需设置专业驾驶员

Easy control, no additional driver necessary

跟随式或独立滑道非跟随式悬挂

Independent festoon station or fixed suspened under hoist

所有手电门都为1挡式按钮，并设有变速选择开关

Pendant with 1 step buttons and selector switch for speed

防爆等级

Explosion proof class:  EEx de IIC T6 / IP65

寿命50万次

Life time 500,000

遥控 Remote Control

操作简便，无需设置专业驾驶员，操作者在地面自由度大

Easy control, no additional driver, remote access

几万组频点，互不干涉

Flexible frequency selection, total reliable
